PBT Injection Molding: Key Process Conditions & Practical Guidelines

Polybutylene Terephthalate (PBT) is a widely used engineering thermoplastic known for its excellent mechanical properties, chemical resistance, and electrical insulation. However, to achieve high-quality parts consistently, understanding its unique processing behavior is essential. Below, we detail PBT’s processing characteristics and recommended injection molding[^1] conditions.

Processing Characteristics of PBT

1. Low Hygroscopicity—but Moisture-Sensitive at High Temperatures
   PBT absorbs relatively little moisture, yet residual water can cause hydrolysis during high-temperature processing, leading to molecular degradation, discoloration (darkening), and surface blemishes. Pre-drying is strongly recommended: typically 2–4 hours at 120°C (with desiccant dryer, dew point ≤ −40°C).

2. Excellent Melt Flowability
   PBT exhibits very low melt viscosity, enabling easy molding of thin-walled and complex geometries. However, this also increases the risk of flash (mold) and drooling from the nozzle—requiring tight mold fit and proper nozzle shut-off design.

3. Sharp Melting Transition
   PBT has a distinct melting point (~223–225°C). Once above this threshold, melt flow increases abruptly—so precise temperature control is critical to avoid uncontrolled flow or jetting.

4. Narrow Processing Window, Fast Crystallization
   PBT crystallizes rapidly upon cooling—even at ambient temperatures. Combined with its high flowability, this makes it ideal for high-speed injection molding, but demands precise control over cycle time and cooling.

5. High & Anisotropic Shrinkage
   PBT exhibits relatively large shrinkage (typically 1.5–2.5% for unfilled grades), and shrinkage differs significantly between flow and transverse directions. This anisotropy must be accounted for in mold design to prevent warpage or dimensional inaccuracy.

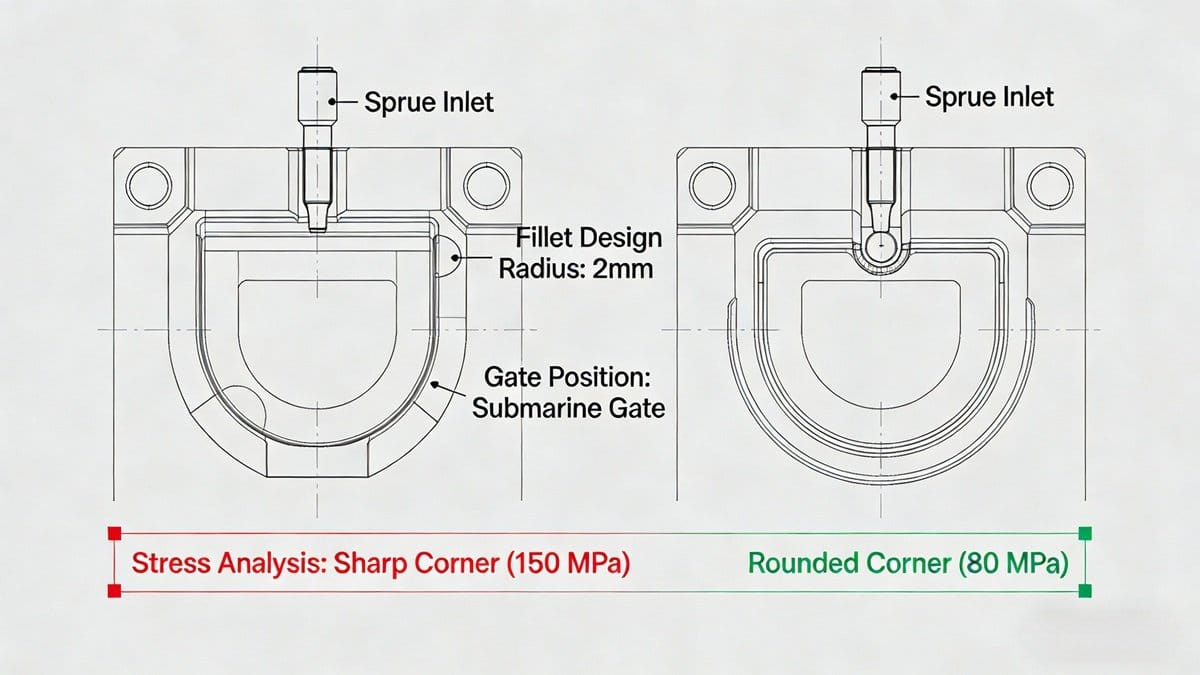

6. High Notch Sensitivity
   PBT is extremely sensitive to sharp corners, edges, or notches, where stress concentration can drastically reduce load-bearing capacity and lead to brittle fracture under impact or static load.
   ✅ Design tip: Always use generous fillets (R ≥ 0.5 mm) at internal corners—especially in load-bearing areas.

7. Elongation & Demolding Behavior

   • Unfilled PBT has high elongation (~200%), allowing forced ejection of parts with minor undercuts or shallow recesses.
   • Glass-fiber or mineral-filled grades show much lower elongation ( ? Note: Always optimize parameters based on part geometry, wall thickness, and machine capability. Use DOE (Design of Experiments) for critical applications.

Final Takeaway

PBT is a high-performance polymer—but its narrow processing window, sensitivity to moisture, and anisotropic shrinkage demand careful attention to drying, temperature control, mold design, and gate strategy. When handled correctly, PBT delivers outstanding dimensional stability, strength, and surface quality.
